Introduction

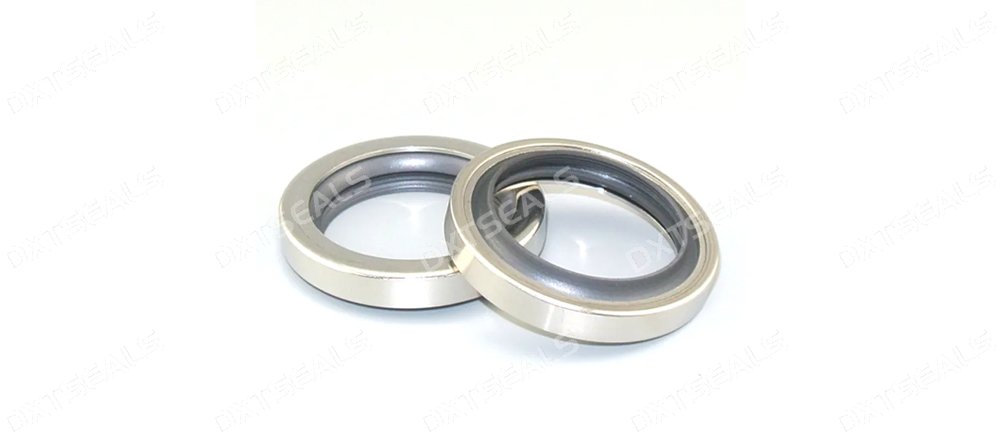

Spring energized seals are widely used in applications that require reliable sealing in extreme environments, such as high pressure, temperature, or chemical exposure. Choosing the right material for your spring energized seal is crucial for optimal performance and longevity. Two of the most commonly used materials are PTFE (Polytetrafluoroethylene) and PEEK (Polyetheretherketone). This article will explore how to choose the right spring energized seal and highlight the differences between PTFE and PEEK materials.
How to Choose Spring Energized Seals
When selecting spring energized seals, several factors need to be considered to ensure the seal can withstand the operating conditions and perform effectively. Here are key aspects to consider:
1.Operating Temperature Spring energized seals need to operate efficiently in a wide range of temperatures. PTFE is known for its exceptional temperature resistance, functioning reliably from -200°C to 260°C (-328°F to 500°F), making it an ideal choice for both cryogenic and high-temperature applications. PEEK, on the other hand, can handle temperatures up to 260°C (500°F) but is more stable at extremely high temperatures. For ultra-high temperature environments, PEEK may offer better performance.
2.Pressure and Load Requirements The pressure in the system is another critical factor. PTFE seals offer excellent sealing performance in low to medium pressure applications due to their low friction characteristics. PEEK, with its higher mechanical strength, is better suited for high-pressure environments where seals are subjected to heavy loads and need to maintain structural integrity.
3.Chemical Compatibility Both PTFE and PEEK offer excellent chemical resistance, but there are differences. PTFE is virtually inert, making it resistant to a wide range of chemicals, acids, and solvents. It is ideal for applications where seals are exposed to aggressive chemicals. PEEK also offers good chemical resistance but may not be as chemically resistant as PTFE in highly corrosive environments. However, PEEK can resist stronger acids and has better resistance to hydrolysis, making it suitable for applications involving high-moisture conditions.
4.Wear and Abrasion Resistance For applications where the seal will be exposed to moving parts or abrasive conditions, wear resistance is critical. PEEK excels in environments that experience significant wear and tear due to its higher mechanical strength and durability compared to PTFE. In high-wear environments, such as those with frequent movement or vibration, PEEK seals provide longer service life. PTFE seals, while offering good abrasion resistance, may wear down more quickly in highly abrasive environments.
5.Friction and Lubrication PTFE is known for its extremely low coefficient of friction, making it a popular choice for applications requiring minimal lubrication or where low friction is necessary for efficient operation. PEEK, while having higher friction compared to PTFE, still provides good frictional properties and can be used in moderate friction environments. If low friction is critical, PTFE is typically the better option.
6.Application Specificity Your specific application will largely determine the type of material to use. For example:
- PTFE is widely used in the chemical processing, food, and pharmaceutical industries due to its inert properties and suitability in extreme temperature and chemical environments.
- PEEK is often preferred in aerospace, oil and gas, and industrial machinery sectors where high pressure, load, and wear resistance are required.
Differences Between PTFE and PEEK
Temperature Resistance
- PTFE: Can withstand temperatures from -200°C to 260°C, making it suitable for cryogenic to high-temperature applications.
- PEEK: Can handle temperatures up to 260°C, but performs better in ultra-high temperature conditions compared to PTFE.
Pressure and Load Capacity
- PTFE: Best for low to medium pressure applications with less mechanical stress.
- PEEK: Ideal for high-pressure environments due to its superior mechanical strength and durability.
Chemical Resistance
- PTFE: Provides excellent resistance to almost all chemicals, acids, and solvents.
- PEEK: Offers good chemical resistance but performs better than PTFE in hydrolysis and moisture-heavy environments.
Wear and Abrasion Resistance
- PTFE: Offers decent wear resistance but may degrade faster in high-abrasion conditions.
- PEEK: Superior wear resistance, making it better for high-wear applications with frequent mechanical movement.
Friction
- PTFE: Has a low coefficient of friction, making it suitable for applications with minimal lubrication requirements.
- PEEK: Slightly higher friction than PTFE but still performs well in low to moderate friction applications.
Conclusion
Choosing the right material for spring energized seals depends on the specific requirements of your application, including temperature, pressure, chemical exposure, and wear conditions. PTFE is ideal for low-friction and chemical-resistant environments, while PEEK excels in high-pressure and high-wear applications. By understanding the differences between these materials, you can make an informed decision to ensure optimal sealing performance and longevity in your systems.
